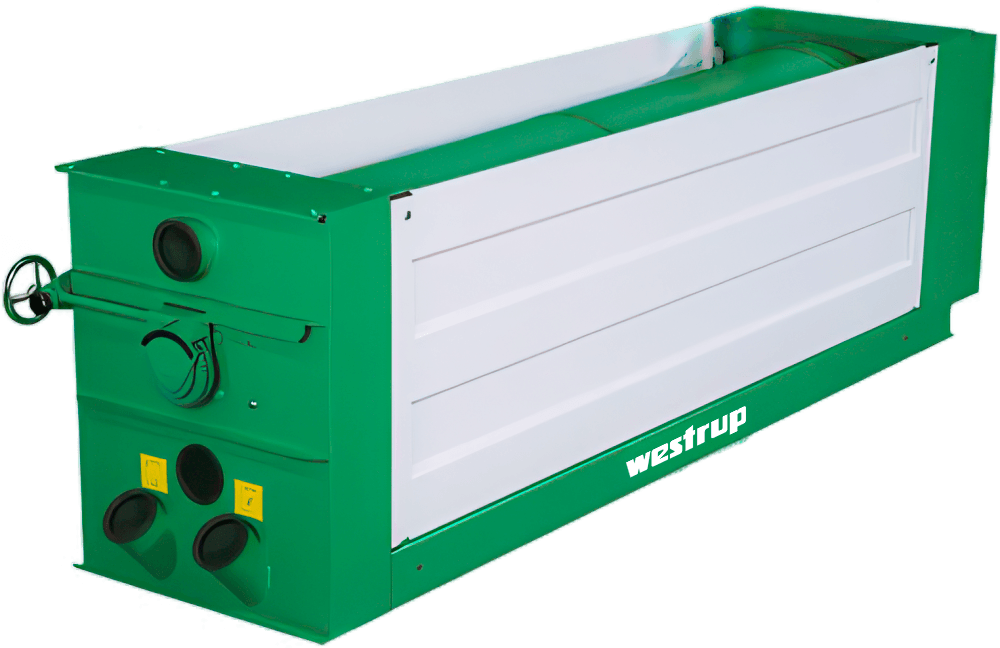

Westrup TR-730 Indented Cylinder

Precision length separation for cleaner, more uniform product

Modular length separator

The Westrup TR is an indented-cylinder length separator designed to separate material according to length. Depending on configuration, it can remove short material, long material, or perform both separations. The line is modular and spans multiple cylinder sizes and capacities, allowing systems to be configured around processing requirements.

The TR indented cylinder separates seed and grain according to length, helping processors remove unwanted short or long material and improve product uniformity.

The TR-730 includes:

• Inlet

• Inner trough, which is manually adjustable from the outside

• Rotating exchangeable mantle

• Cylinder with agitator (short product), or agitator with screw (splitting), or outlet brake (long product)

• Outlet for long fraction and outlet for short fraction at the outlet end of the machine

• Holes for manual sampling

• Safety and access cover on left and right hand side of the machine

• Lifting handles to assist mantle change (not available for TR-1240/-1250)

• Prepared for connection of external aspiration

• Drive and motor

Options:

• Mantle, case-hardened or Teflon-coated inside

• Frequency converter (supplied separately for customer installation)

• Motorized trough adjustment

• Built-in pipe system for compressed air cleaning

• Top cover

• Bottom mesh plate for safety

• Inspection hatch in the mantle (inlet end or outlet end)

Quantity available: 1
