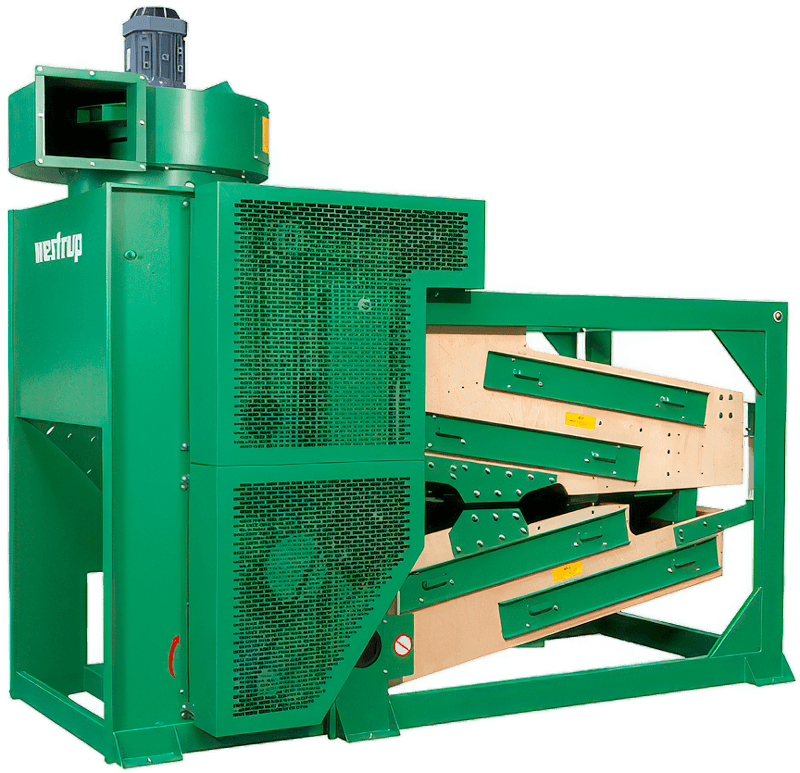

Westrup AS-1500 2-2 Precleaner
Efficient pre-cleaning before grain enters your processing line
Streamlined grain pre-cleaning
The Westrup AS is primarily a grain pre-cleaner designed for incoming product at grain storage and processing facilities. It combines aspiration with four screening segments to remove oversized material, fines, and lighter contaminants before downstream processing. Westrup lists AS-1000 and AS-1500 models with capacities up to 30 t/h under its stated wheat test conditions.
The AS pre-cleaner helps grain processors remove oversized material, fines, and lightweight contaminants before grain moves into downstream cleaning, grading, or storage.
The AS pre-cleaner includes:
Integrated inlet section with weight loaded valve (AS-1000) or with feed roll and weight loaded valve (AS-1500)
Aspiration chamber with integrated screw with external outlet for removed product on the righthand side of the machine
Screen section consisting of two sieveboats with screen change from either side of the machine
Upper sieveboat with 2 scalping screen layers with 9 ° inclination
Lower sieveboat with 2 sand screen layers with 11 ° inclination
In total 4 screen segments with standard perforations above 2 mm; all screen segments with rubber ball cleaning
Prime product outlet placed under the machine for the entire width of the sieveboat
Fixed drive of sieveboats and screw
Options:
Inlet hopper
Feed roll for AS-1000
Adaptive aspiration control system
Fan with motor
Quantity available: 1
