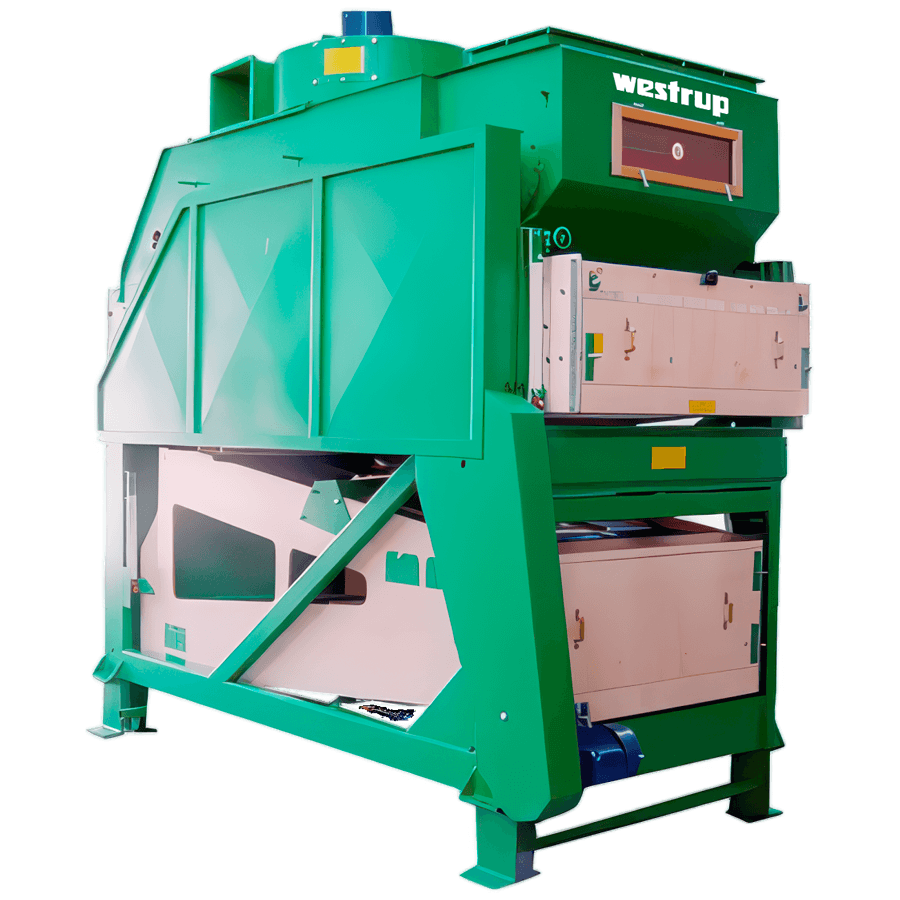

Westrup FAU-1250 Fine Cleaner
Fine cleaning designed for demanding seed and grain applications
Ultra precision cleaning
The Westrup FAU is designed as a primary fine-cleaning machine for seed and grain processing plants. It combines controlled feeding, aspiration, multiple screen layers, rubber-ball screen cleaning, and a final aspiration channel. Westrup currently lists three sizes with nominal capacities of 9–13 t/h under its stated wheat test conditions.
The FAU fine cleaner combines multiple screening stages with aspiration to remove unwanted material and produce cleaner, more consistent seed and grain.
The FAU-1250 includes:
Integrated inlet section with feed roll with variable drive.
Aspiration chamber with integrated screws and outlets for removed product on the right-hand side of the machine.
Screen section consisting of two sieveboats with screen flow 2-2 (upper sieveboat with two screen layers and lower with one return plate and two screen layers).
All screen segments with rubber ball cleaning.
Final aspiration channel with inspection window.
Prime product outlet placed under the machine for the entire width of the machine.
Common drive of feed roll, sieveboats, and screws.
Options:
Feed roll in various constructions (rubber covered, with gear variator 0-38 rpm, with fixed drive).
Vibrator feeder.
False air valve at top of machine or for adjustment from floor level.
Adaptive aspiration control system.
Fan with motor.
Quantity available: 1
